QUATTROLIFTS NOMAD

THE GLASS INSTALLER’S HELPER

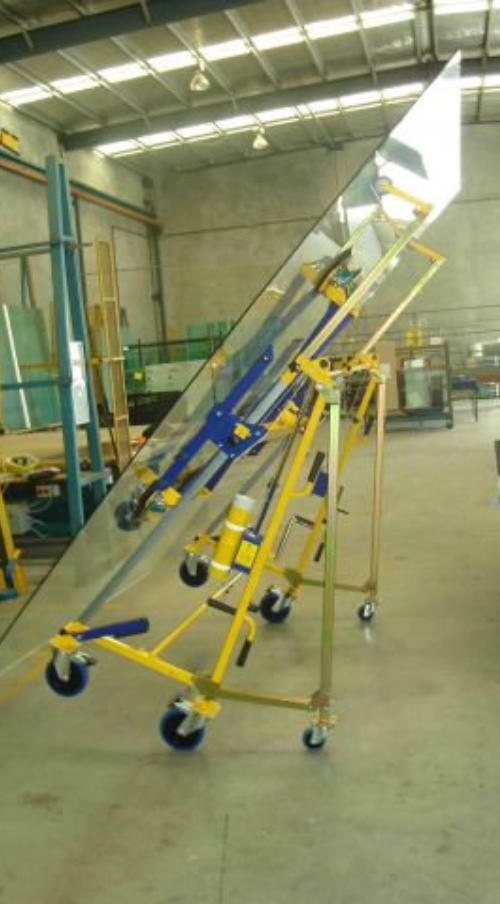

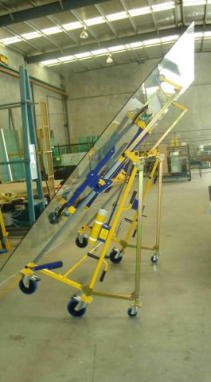

Eliminates    OHS    issues    such    as    strains    and    sprains    resulting    from manual handling of glass. Reduces    man    power    required    for    transportation    and    installation    of heavy glass by up to 50 percent. Prevents breakages and damage to glass in transport and installation. Protects the workers whilst carrying glass. Rotate long plates of glass. The   Quattrolifts   Nomad   is   designed   to   assist   glaziers   to   unload,   transport and   install   glass   safely.   It   has   a   lifting   capacity   of   400   Kg's   (880   Lbs).   It   can rotate   glass   measuring   upto   4400   mm   (180").   It   has   adjustments   to   allow   for side and top pocket glazing. The   Nomad   is   the   world's   first   patented   labour   saving,   cost   effective   device which   offers   a   safer   option   to   the   manual   handling   of   glass,   slate   and   board on site. The   Nomad   was   designed   and   developed   by   an   Australian      Chiropractor   and Occupational    Health    and    Safety    Consultant,    that    assists    glaziers   with    the installation,   transportation   and   rotation   of   glass   weighing   up   to   400   kg   (880 lb). The    Nomad    has    received    the    following    awards:    2005    2nd    Place    -    Best Solution   For   Sprain   and   Strain   Injuries,   WorkSafe   Vic   Australia   Award;   2005 Finalist   Engineers   Australia   Award;   2004   Invention   Of   The   Year   Award.      The Nomad complies with all relevant European directives.

FEATURES

Pickering, ON Canada +1-416-432-7547 +1-647-669-5430 sales@atwoodsales.com  http://www.atwoodsales.com
ATWOOD SALES INC Glass industry Machines & Tooling
Mobile Glass Handling Solutions
Glass Storage, Dollies, Other
CNC Glass Cutting Tables
Glass Fabrication Machines
Mobile Glass Handling Solutions

Nomad 400/880

400 kg or 880 lbs lifting capacity

ROTATOR ATTACHMENT

ROTATE GLASS EASILY

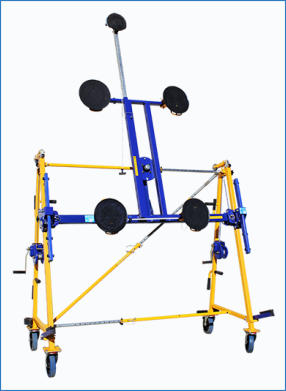

Every Nomad now comes with the Rotator Attachment (Blue section above) as a standard item.  This allows for a full 360 degree rotation with set 90 degree intervals.  The attachment also allows for increased reach and fast and easy assembly or disassembly to make transporting your Nomad to the worksite easy.

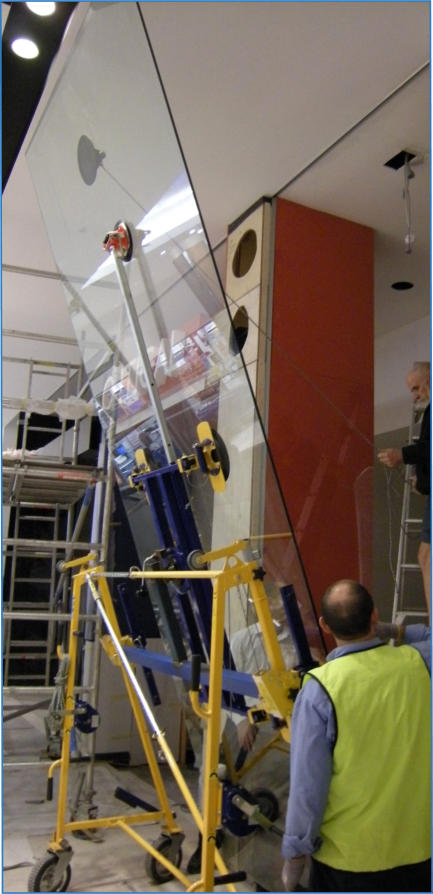

INSTALL LARGE PIECES

UP TO 180 INCHES !

With the Quattrolifts Nomad and some experience, it is possible to install large glass sheets up to 180” on one dimension!

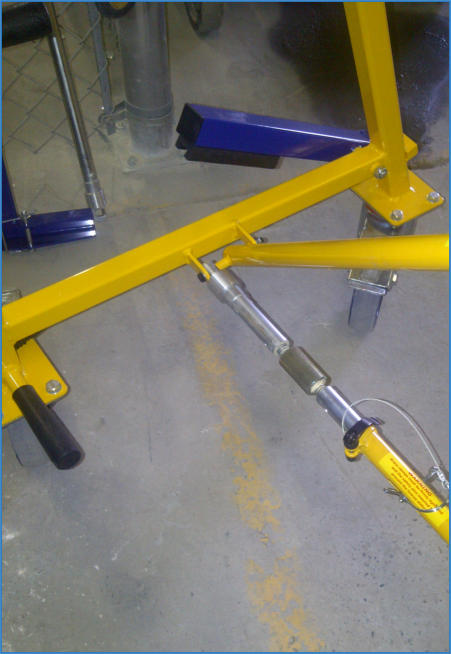

QUICK RELEASE CONNECTORS & SIDE SHIFT MECHANISM

FOR FAST ASSEMBLY & POCKET

INSTALLATION

The Nomad uses a quick release latch system to easily attach crossbars and assemble the unit quickly at the jobsite.  This makes the Nomad easy to transport even in a small truck.  The diagonal telescopic support bar also features an adustable mechanism to make pocket installations easier by allowing the glass to be shifted sideways during installation.

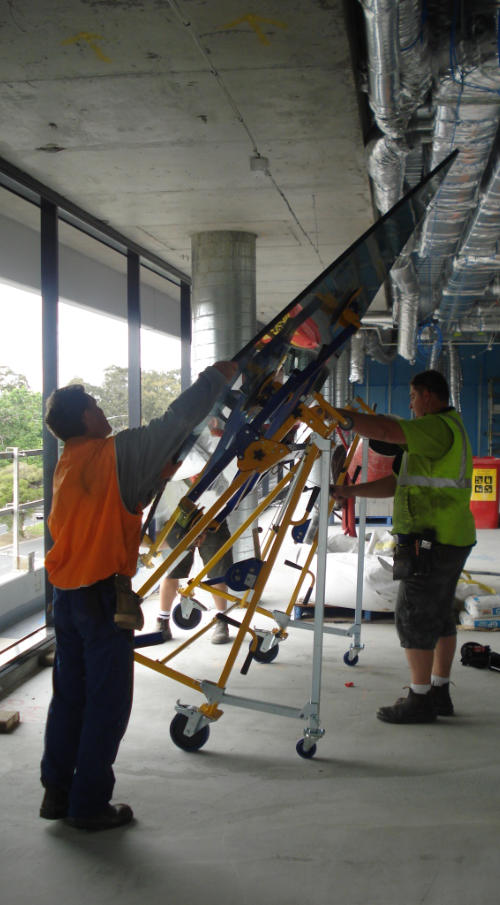

OUTRIGGER LEGS

IDEAL FOR ROTATING IN TIGHT

SPACES

Optional Outrigger Legs quickly attach to the back side of the Nomad to allow installers to rotate large glass sheets in low ceiling areas .

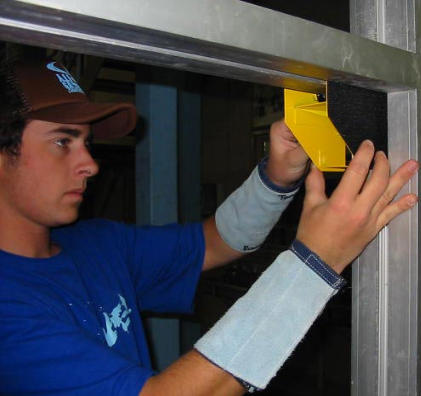

GLAZING GUIDES

IDEAL FOR HELPING INSTALLERS

DURING INSTALLATION

Glazing guides come with each Nomad and assist the installers during installation by helping guide the glass into the window frame channel.

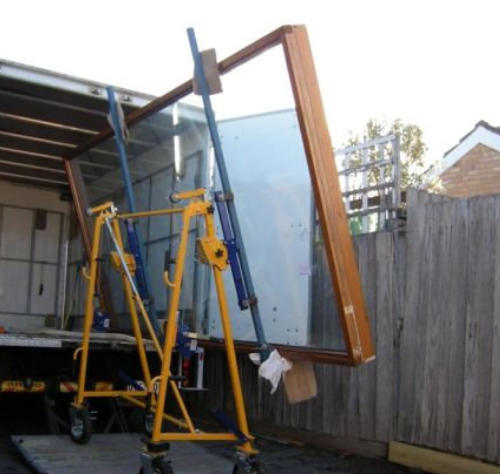

WINDOW TRANSPORTER

FOR WINDOW FRAMES

Optional Window Transporter brackets can easily be attached to the Nomad for transporting framed windows.

NOMAD ACCESSORIES

The Nomad comes with a few standard and optional accessories.

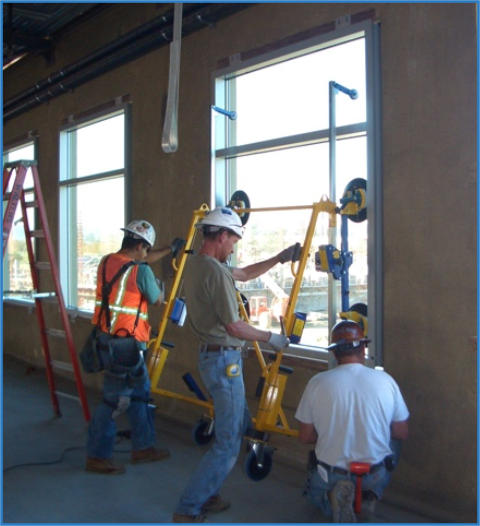

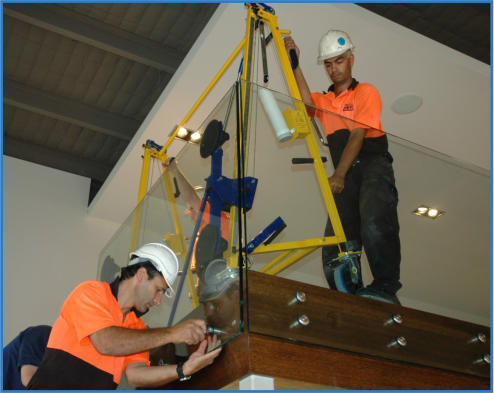

Installing Ballustrades

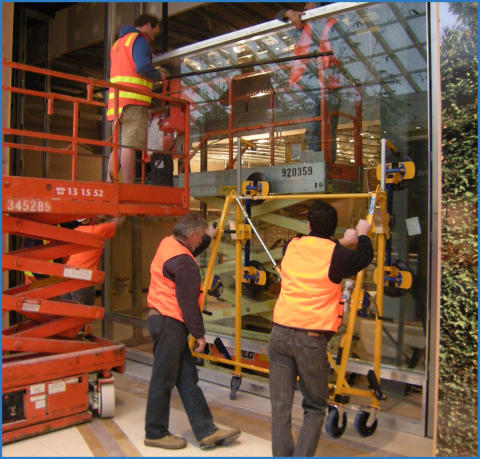

Installing

Storefronts

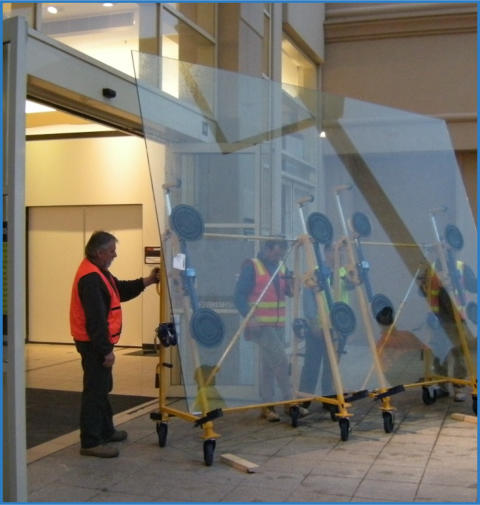

Double Up for really large pieces

NOMAD FEATURES

The Nomad has the following features

Instal Pre-Glazed

NOMAD VIDEOS

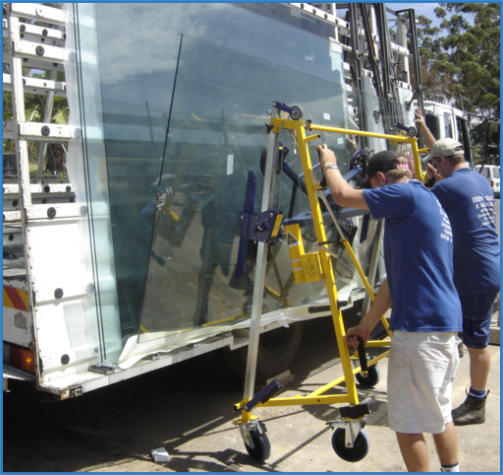

Load/Offload Truck

Quick Change Wheel System
Nomad 400 Spec Sheet
Nomad 400 Manual
